AT056TN53 V.1是群創5.6寸液晶屏2020年12月份版本變更，AT056TN53 V.1具體變更內容如下：
1、 變更主題：Model name：AT056TN53 V.1
2、 變更原因：產能配置規書，模組轉廠佛山
3、 變更內容：
1、 變更內容：
Item | Detail | Before | After | Remark |
1 | P/N | Product ID：GZ0560NA00250 | Product ID：GZJ056NA0020S | |
2 | PCBA | 1. PCBA SMT Vender: NGB BLC 2. PCB Vender: 競國-APCB 3. Capacitors size: 1206 & 0805 4. Resistors size: 0603 5. Inductance: 4.7uH +6.8uH 6. PWM power circuit: Fiti / FP6791TSPTR 7. Converter power circuit: MPS / MP3302DJ-C136 | 1. PCBA SMT Vender: FS BLC 2. PCB Vender: 瀚宇博德-PSA 3. Capacitors size: 0603 4. Resistors size: 0402 5. Inductance: 10uH 6. PWM power circuit: Novatek/NT50312QG-028/A 7. Converter power circuit: Richtek / CM509A-RI03 | 供應商變更、外觀 變更 Vender change、 Appearance change |
3 | System link | 欣興同泰- Unimicron | 毅嘉-Ichia | 供應商變更 Vender change |
4 | Panel link | 欣興同泰- Unimicron | 毅嘉-Ichia | 供應商變更 Vender change |
5 | Bezel | 1.Vender: NGB BLC 2.Material: ACSS | 1.Vender: FS BLC 2.Material: SGLC | 供應商變更、材質 變更 Vender change、 Material change |
6 | Package | 模組採用靜電袋包覆 The product is covered with PE bag. | 模組採用鋁箔袋包覆 The product is covered with aluminum bag.
| 模組採用鋁箔袋包 覆，具有良好的阻 溼能力，故取消外 袋。 The product is covered with aluminum bag, which has good moisture resistance, so the outer bag is eliminated.
|

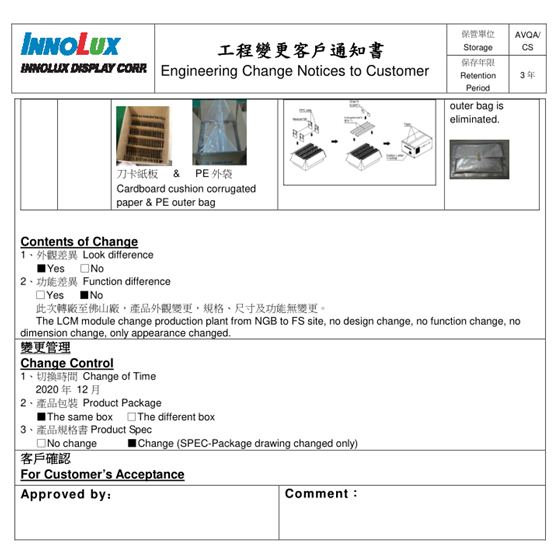

7 | Package | 刀卡上下放置紙板&套上 PE 外袋 Cardboard cushion with corrugated paper(top/bottom) & PE outer bag
刀卡紙板 & PE 外袋 Cardboard cushion corrugated paper & PE outer bag | 刀卡取消上下紙板&PE 外袋 Cardboard cushion remove corrugated paper(top/bottom) &PE outer bag
|
Contents of Change
1、外觀差異 Look difference
■Yes □No
2、功能差異 Function difference
□Yes ■No
此次轉廠至佛山廠，產品外觀變更，規格、尺寸及功能無變更。
The LCM module change production plant from NGB to FS site, no design change, no function change, no dimension change, only appearance changed.
變更管理
Change Control
1、切換時間 Change of Time
2020 年 12 月
2、產品包裝 Product Package
■The same box □The different box
3、產品規格書 Product Spec
□No change ■Change (SPEC-Package drawing changed only)
AT056TN53 V.1是群創5.6寸液晶屏變更前后功能沒任何差異，外觀是有明顯的差異，比如保證材料也是由原來的靜電袋包裝換成了現在的鋁箔袋，還有是一些材料的供應商也變更了，但是液晶屏的功能沒有任何差異。
